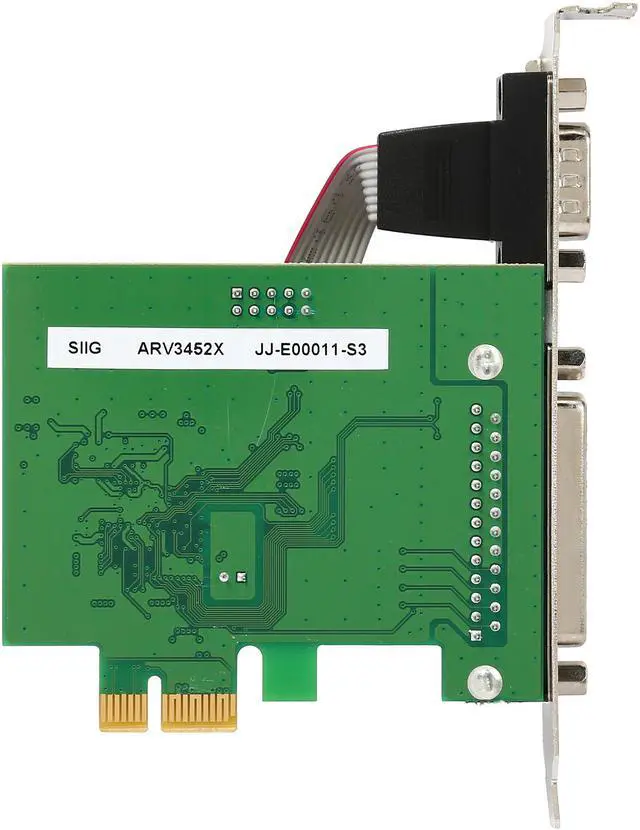

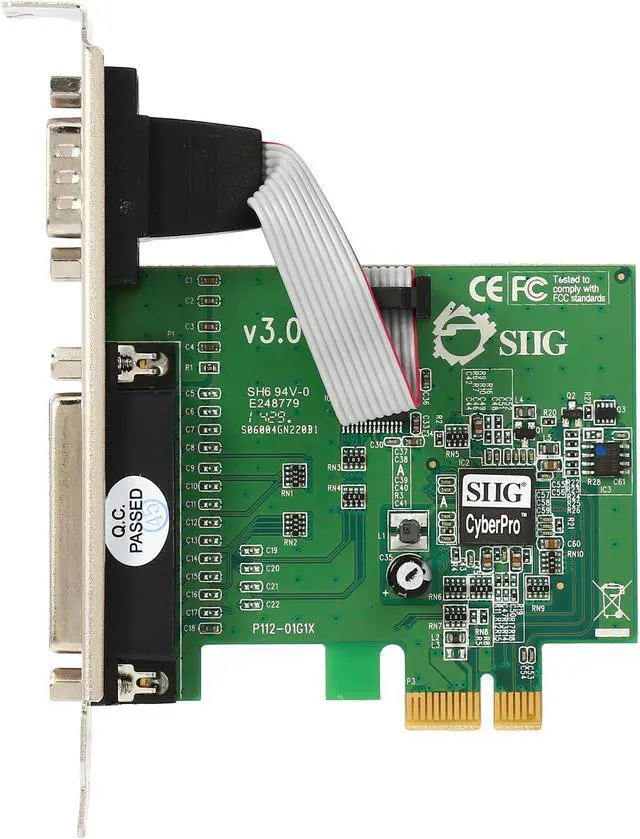

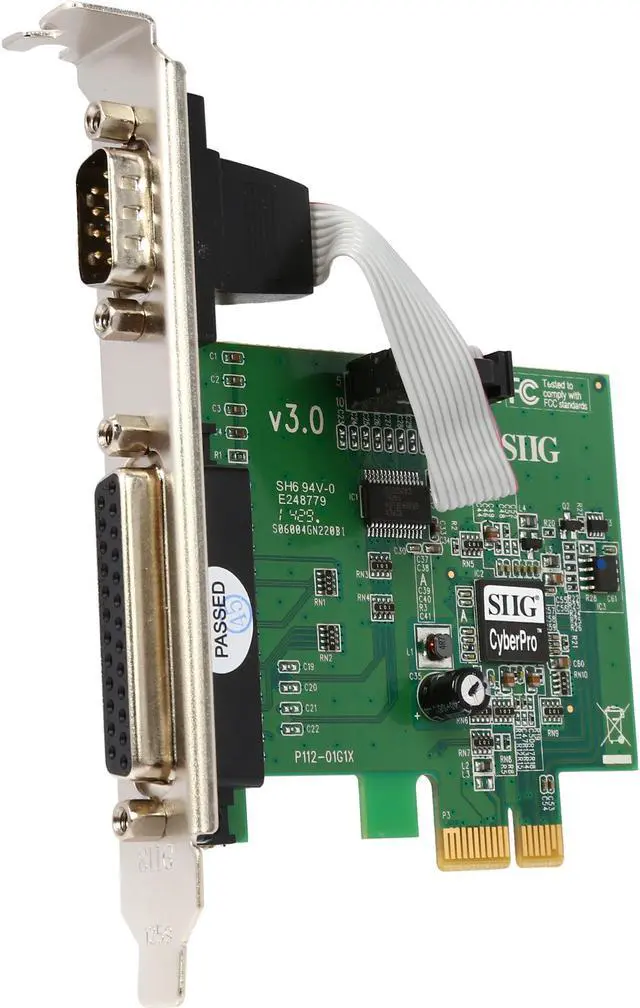

PCIe adapter with 1 high-speed 16950 UART serial (9-pin) and ECP/EPP parallel (DB25) port
Works as standard RS-232 port or with 5V or 12V power output for devices that require power.
+
+
Overview
Specs
Reviews (4)
PCI Express (PCIe) adapter with 1 high-speed 16950 UART serial (9-pin) and ECP/EPP parallel (DB25) port
Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.). Configurable via jumpers
Installs in any PCIe slot
Learn more about the SIIG, Inc JJ-E00011-S3
Model
Brand
SIIG
Model
JJ-E00011-S3
Details
Type
PCI Express to Parallel / Serial Port
External Ports
1 x Serial Ports + 1 x Parallel Port
Operating Systems Supported
Windows 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / 2000
Features
Features
PCI Express (PCIe) adapter with 1 high-speed 16950 UART serial (9-pin) and ECP/EPP parallel (DB25) port
Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.). Configurable via jumpers
Installs in any PCIe slot
Chipset: Oxford OxPCIe952
Compliant with PCI Express Base Specification, Revision 1.1
Bus type: PCI Express x1

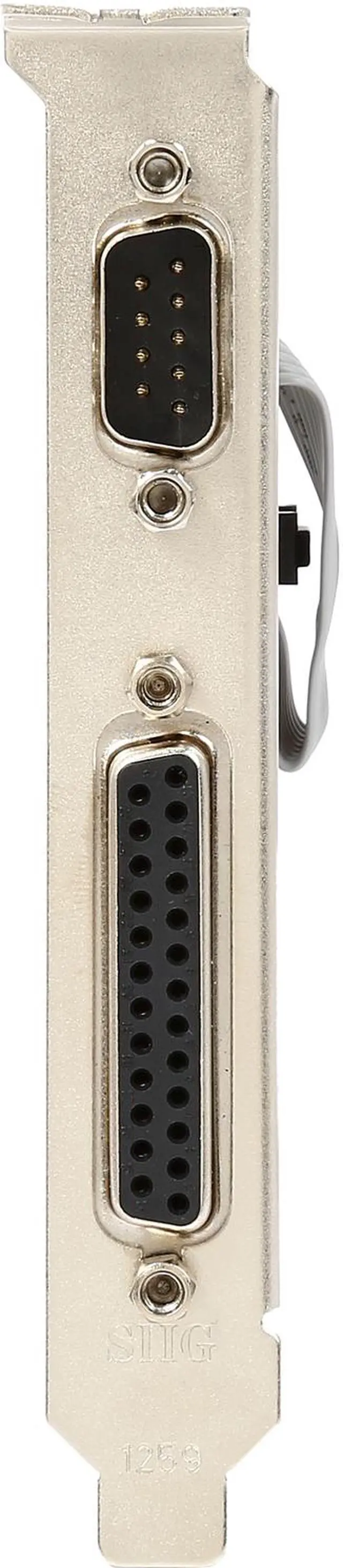

Ports: Serial: 9-pin, Male, RS-232 Parallel: 25-pin, Female 4-layer PCB: separate layers for data and grounding. Greatly reduces signal noise and loss. Delivers more reliable high-speed data transfers Onboard power connector to provide reliable power source for devices that require power
Serial port: 9-pin, RS-232, 16950 UART Built-in 128-Byte FIFO buffers Asynchronous baud rates up to 15Mb/s
Parallel port: Compliant with IEEE 1284-1994 parallel port standard Supports ECP, EPP, SPP parallel port modes
Environmental conditions: Operating temperature: 32 to 122 degrees F (0 to 50 degrees C) Operating humidity: 20% to 80% RH Storage temperature: -4 to 140 degrees F (-20 to 60 degrees C) Storage humidity: 10% to 90% RH Certifications/Standards: FCC, CE, RoHS Warranty: Lifetime limited Country of origin: China
Requirements PCI Express-enabled system with an available PCI Express slot Windows® 8 (32-/64-bit) / 7 (32-/64-bit) / Vista (32-/64-bit) / XP (32-/64-bit) / Server 2003 & 2008 (32-/64-bit) / Server 2008 R2 / 2000
Packaging
Package Contents

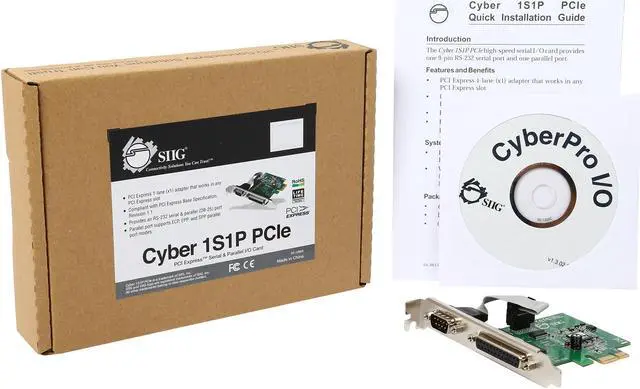

Cyber 1S1P PCIe adapter Driver CD Installation guide
Additional Information
Date First Available
February 09, 2022
