Main Features
20x Optical + 16x Digital Zoom
High quality super telephoto lens, 20x optical zoom, and 16x digital zoom.
H.265 Support
H.265 ecoding, enabling transmit full HD 1080p video stream by ultra-low bandwidth.
1080P Full HD
Apply Panasonic's high quality HD CMOS sensors of 1/2.7 inch, 2.07 million effective pixels, so as to reach maximum 1920 x 1080 resolution and achieve quality image.
AAC Audio Encoding
Support AAC audio encoding, better sound quality and smaller bandwidth.
Low-light
High quality CMOS sensor and 2D/3D noise reduction can reduce image noise.The Image is still clear and sharp even in low light enviroment, and the SNR is high more than 55dB.

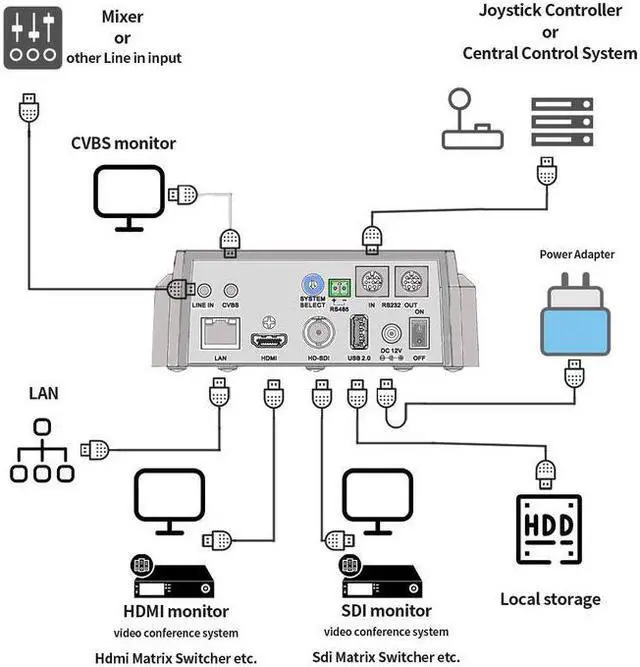

Multiple Interfaces
Support HDMI , 3G-SDI interface, effective transmission distance up to 150 meters (under 1080p30). HDMI, SDI, Network can output at the same time. It also support CVBS interface.

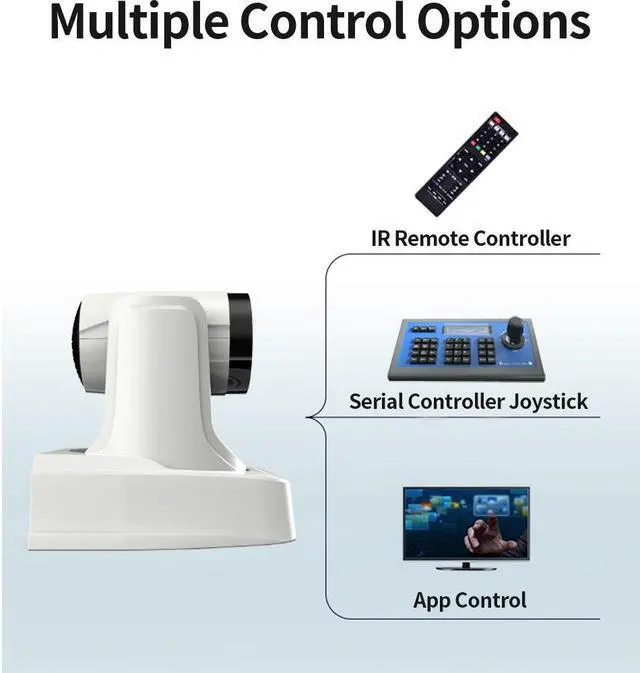

Remote Control
Using R232 and RS485 interface, all the parameters of the camera can be controled remotely.
| Video System |
HD: 1080p/60, 1080p/50, 1080i/60, 1080i/50, 1080p/30, 1080p/25, 720p/60, 720p/50, 720p/30, 720p/25, |
| Sensor |
1/2.7'', CMOS, Effective Pixel: 2.07M |
| Scanning Mode |
Progressive |
| Lens |
20x, f4.42mm~88.5mm, F1.8 ~ F2.8 |
| Digital Zoom |
16x |
| Minimal Illumination |
0.5 Lux @ (F1.8, AGC ON) |
| Shutter |
1/30s ~ 1/10000s |
| White Balance |
Auto, 3000K/Indoor, 4000K, 5000K/Outdoor, 6500K_1, 6500K_2, 6500K_3, One Push, Manual |
| Backlight Compensation |
Support |
| Digital Noise Reduction |
2D&3D Digital Noise Reduction |
| Video S/N |
greater or equal to 55dB |
| Horizontal Angle of View |
60.7° ~ 2.28° |
| Vertical Angle of View |
34.1° ~ 1.28° |

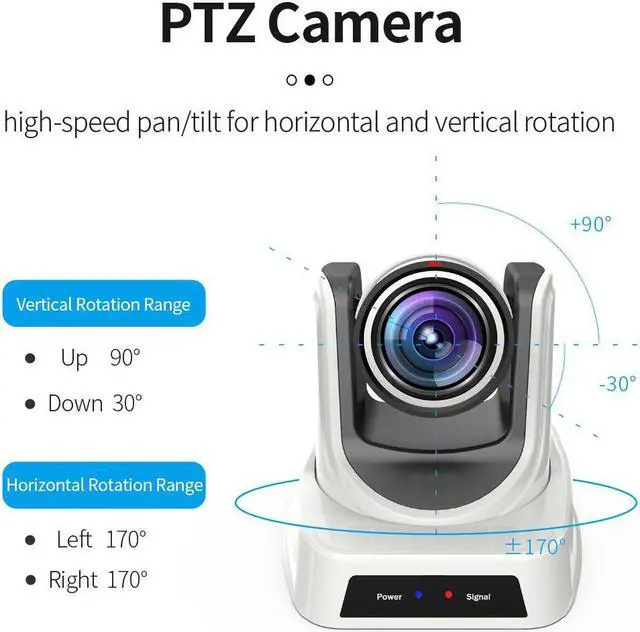

| Vertical Rotation Range |
-30° ~ +90° |
| Pan Speed Range |
1.7° ~ 100°/s |
| Tilt Speed Range |
1.7° ~ 69.9°/s |
| H & V Flip |
Support |
| Image Freeze |
Support |
| PoE |
Support (802.3af) |
| Local Storage |
Support |
| Number of Preset |
255 |
| Preset Accuracy |
0.1° |
| Video Compression |
H.265 / H.264 / MJEPG |
| Video Stream |
Main Stream, Sub Stream |
| Main Stream Resolution |
1920x1080, 1280x720, 1024x576 |
| Sub Stream Resolution |
720x576, 720x480, 320x240 |
| Video Bit Rate |
128Kbps ~ 8192Kbps |
| Bit Rate Type |
Variable Rate, Fixed Rate |
| Frame Rate |
50Hz: 1fps ~ 50fps, 60Hz: 1fps ~ 60fps |
| Audio Compression |
AAC |
| Audio Bit Rate |
96Kbps, 128Kbps, 256Kbps |
| Support protocols |
TCP/IP, HTTP, RTSP, RTMP, Onvif, DHCP, Multicast, etc. |
| HD Output |
1xHDMI: Version 1.3 |
| HD Output |
1x3G-SDI: BNC type, 800mVp-p, 75ohm, Along to SMPTE 424M standard |
| SD Output |
1xCVBS: 3.5mm mini jack, 1Vp-p, 75ohm |
| Network Interface |
1xRJ45: 10M/100M/1000M Ethernet Interface,Support PoE power supply |
| Audio Interface |
1-ch: 3.5mm Audio Interface, Line In |
| USB |
1xUSB2.0: Type A female jack |
| Communication Interface |
1xRS232 In: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P |
| Communication Interface |
1xRS232 Out: 8pin Min DIN, Max Distance: 30m, Protocol: VISCA network use only |
| Communication Interface |
1xRS485: 2pin Phoenix Port, Max Distance: 1200m, Protocol: VISCA/Pelco-D/Pelco-P |
| Power Jack |
JEITA type (DC IN 12V) |
| Input Voltage |
DC 12V |
| Current Consumption |
1.0A (Max) |
| Operating Temperature |
-10°C ~ 40°C (14°F ~ 104°F) |
| Storage Temperature |
-40°C ~ 60°C (-40°F ~ 140°F) |
| Power Consumption |
12W (Max) |
| Net Weight |
1.35Kg (3.0lb) |
