Windows 7, 8, 8.1, 10 Windows Server 2008 R2, 2012, 2016, 2019 Linux 3.5 to 4.11.x LTS version only macOS Catalina (10.15) macOS Mojave (10.14) macOS High Sierra (10.13)
Compatibility
PCI Express enabled computer or server with a PCI Express x4 slot or higher (x8, x16)
Specifications
Connector Type(s): 1 - PCI Express x4 Male Bus Type: PCI Express Card Type: Standard Profile (LP bracket incl.) Chipset ID: ASMedia - ASM3142 Industry Standards: USB 3.2 Specification Rev. 2.0 USB Specification Rev. 2.0 PCI Express Base Specification Rev. 3.0 Intel xHCI Specification Rev. 1.1 UASP (USB Attached SCSI Protocol) Rev. 1.0 Interface: USB 3.1 Gen 2 Port Style: Integrated on Card Ports: 2
Maximum Data Transfer Rate: 10Gbps UASP Support: Yes
Note: The card's USB-C ports are standard data throughput port. They do not support DP Alt Mode or USB Power Delivery. The maximum throughput of this card is limited by the bus interface. PCI Express Gen 1.0 max throughput is 2.5Gbps. PCI Express Gen 2.0 max throughput is 5Gbps. PCI Express Gen 3.0 max throughput is 10Gbps.
Features
Features
Transfer files and access USB 3.1 Gen 2 devices faster, with up to 10Gbps of throughput
Optional SATA power connector for high power devices
Fits into standard or low-profile systems with a dual-profile design
Compliant with Universal Serial Bus 3.1 Gen 2 Specification
Compliant with UASP (USB Attached SCSI Protocol) Revision 1.0
Dimensions & Weight
Dimensions
0.70" x 4.80" x 3.10"
Weight
0.10 lbs.
Packaging

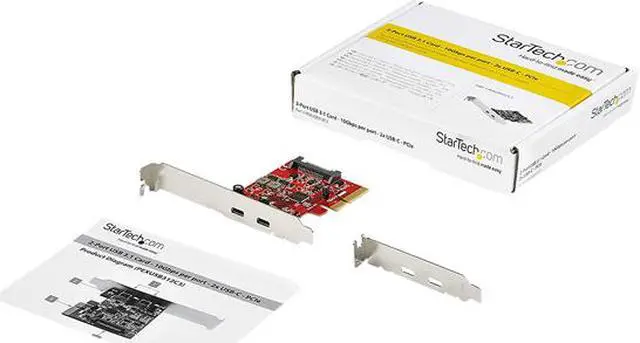

Package Contents
1 x USB 3.1 Card 1 x Low Profile Bracket 1 x Quick Start Guide
Additional Information
Date First Available
May 26, 2020
