TERRAMASTER F4-223 4Bay NAS Storage High Performance for SMB with N4505 Dual-Core CPU, 4GB DDR4 Memory, 2.5GbE Port x 2, Network Storage Server (Diskless)

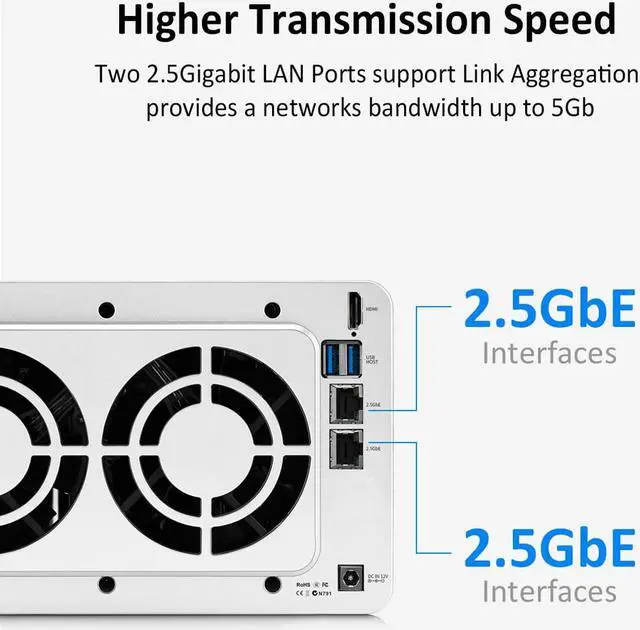

Powerful Hardware: Equipped with N4505 dual-core 2.0GHz CPU, 4GB RAM DDR4 (expandable up to 32GB). With dual 2.5-Gigabit Ethernet ports, the NAS server supports up to 5 Gbps under Link Aggregation. A powerful 4 bay NAS designed for SMB High Performance Requirements.
Maximum Internal Raw Capacity: 80TB (20 TB drive x 4). This network attached storage is compatible with 3.5" and 2.5" SATA HDD, 2.5" SATA SSD. Supports RAID 0/1/5/6/10/JBOD/Single; Supports online capacity expansion and online migration. The built-in M.2 2280 NVMe SSD slot can realize SSD cache acceleration and increase the storage efficiency of the disk array several times.
Multiple Backup Solutions: utilizes Centralized Backup, Duple Backup, Snapshot, CloudSync that are available in the NAS enclosure to enhance the safety of your data.
Easily build file storage servers, mail servers, web servers, FTP servers, MySQL databases, CRM systems, Node.js, and Java virtual machines, as well as a host of commercial applications.
+
+
Overview
Specs
Reviews
TERRAMASTER F4-223 4Bay NAS Storage High Performance for SMB with N4505 Dual-Core CPU, 4GB DDR4 Memory, 2.5G bE Port x 2, Network Storage Server (Diskless)
Learn more about the Terra Master F4-223
Model
Brand
Terra Master
Model
F4-223
Type
Desktop NAS
Interfaces
Ports
2 x 2.5GbE / 2 x USB 3.1
Port RJ-45
2 x 2.5 GbE
Port USB
2 x USB3.1
HDD Interface
4 x SATA (4 x Bay)
Configuration
Form Factor
4-Bay
Processor
Intel® Celeron® N4505,X.86 64-bit,Dual Core 2.0 GHz (Max burst up to 2.9 GHz)
Installed Memory
4GB
Max Memory Capacity
32GB
Memory Slot
2 x DDR4 SODIMM
Hard Drive Performance
Included HDD Capacity
Diskless System
Max Capacity
80TB
Drive Compatibility
3.5" SATA HDD 2.5" SATA HDD 2.5" SATA SSD
Power
Power
100V - 240V AC,50/60 Hz, Single frequency
Power Consumption
35.2W(Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in read/write state) 13.9 W (Fully loaded Seagate 4TB ST4000VN008 hard drive(s) in hibernation)
Environmental
Temperature
Working Temperature 0°C ~ 40°C (32°F ~ 104°F) Storage Temperature -20°C ~ 60°C (-5°F ~ 140°F)
Humidity
5% ~ 95% RH
Features
Usage
Backup & stream media through personal cloud
Dimensions & Weight
Dimensions
227 x 225x 136 mm
Weight
3.6 kg
Additional Information
Date First Available
October 31, 2022
