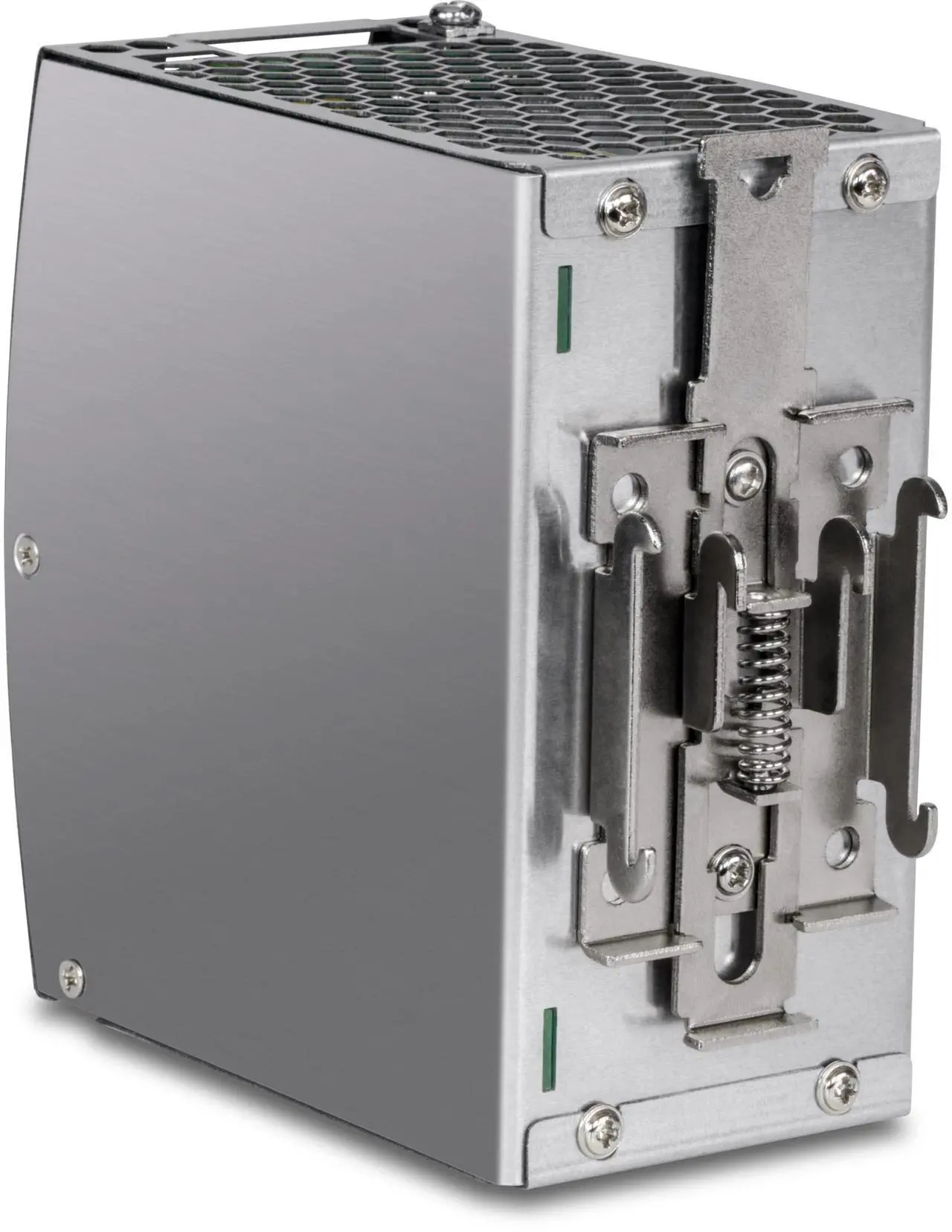

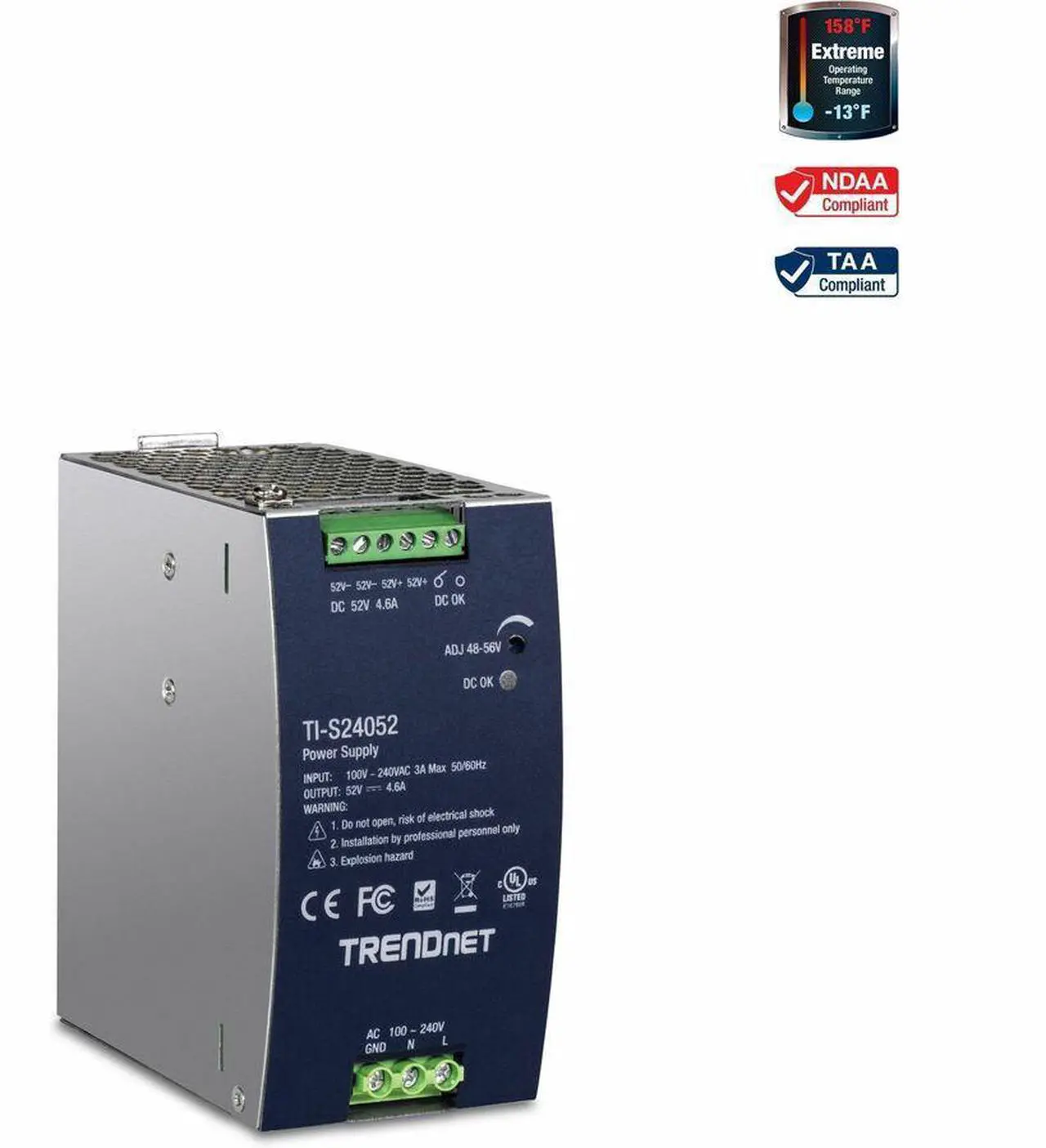

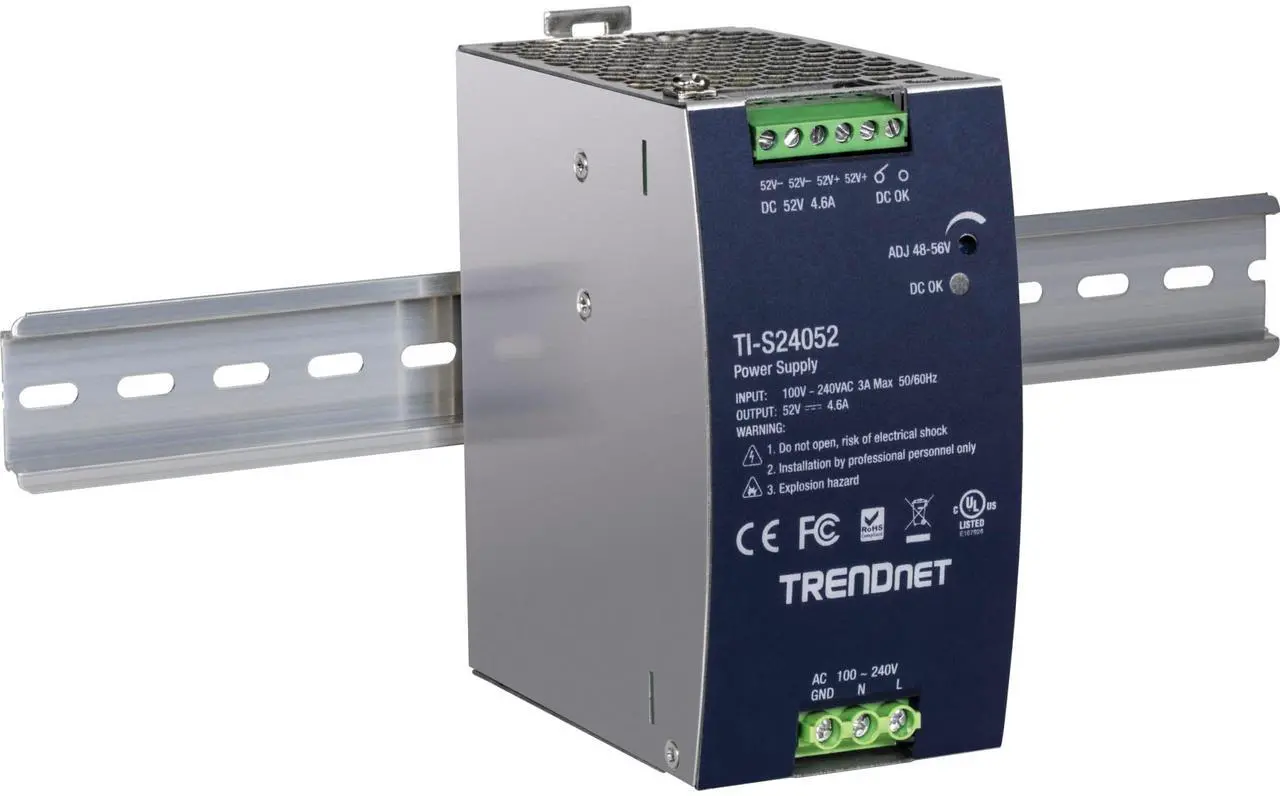

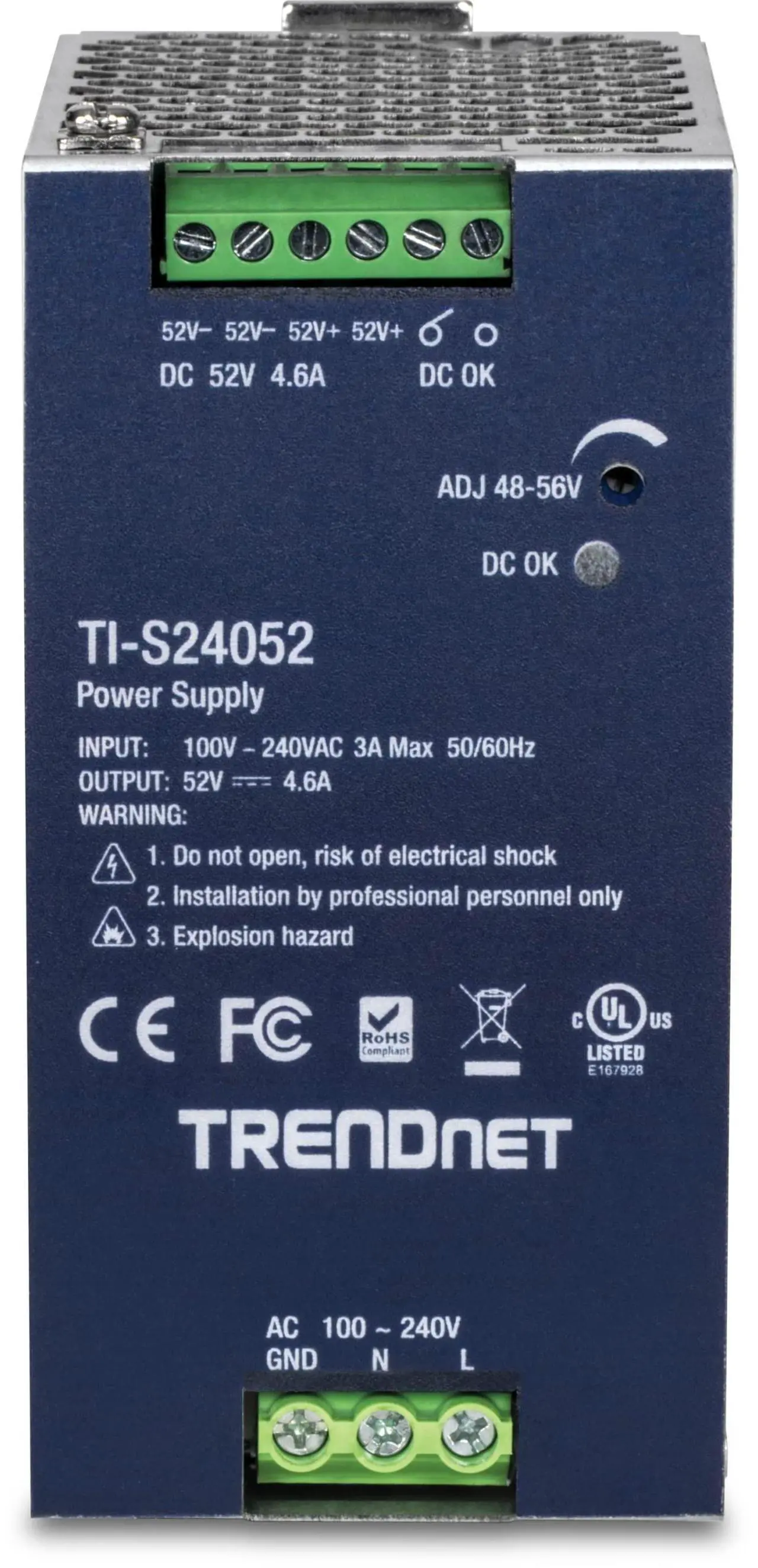

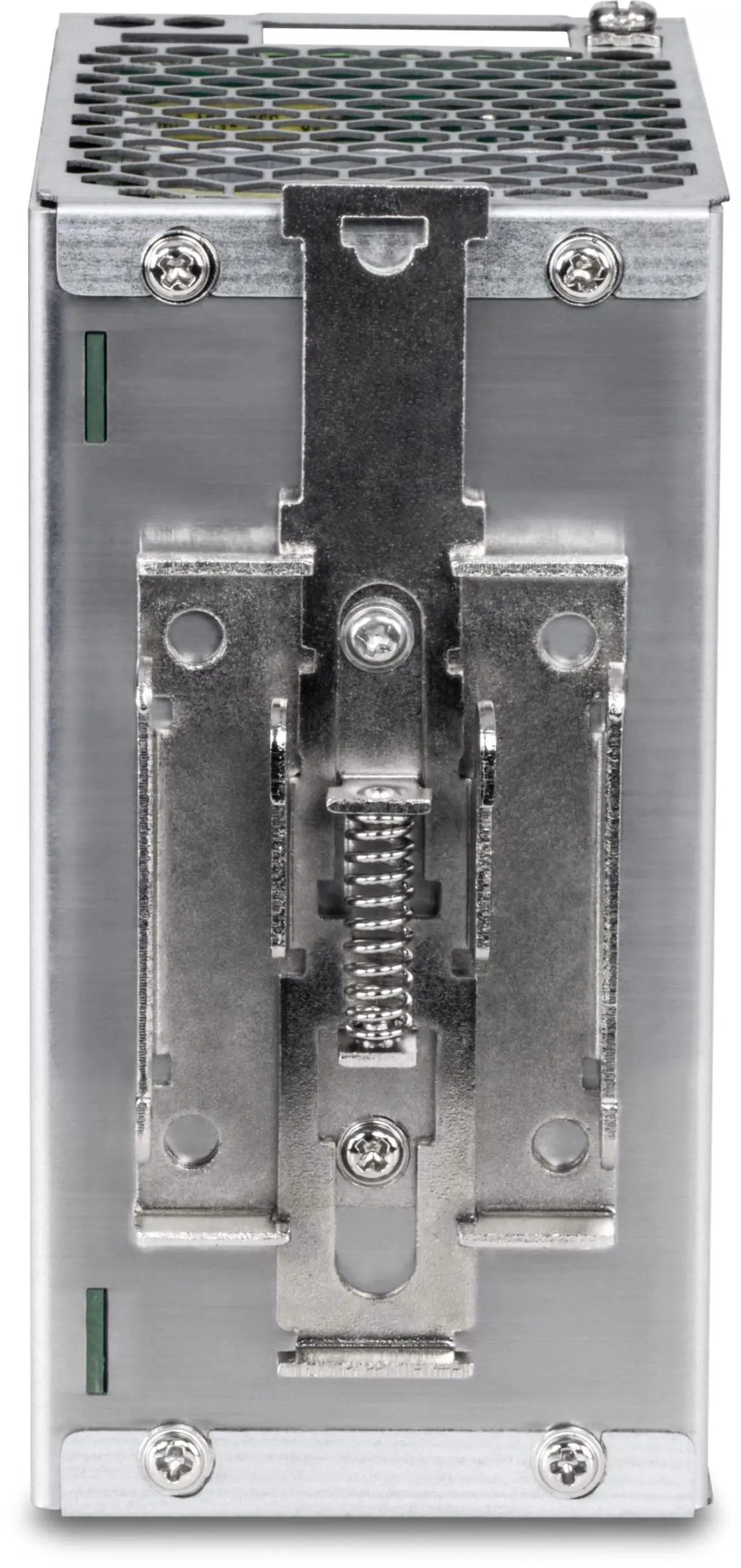

Industrial power supply with integrated DIN-Rail mount
Provides up to 240W of power (52V DC, 4.61A)
Supported output voltage 48 56V DC
High efficiency 94% and low power dissipation
150% peak load capability
Built-in active Power Factor Controller (PF > 0.98)
Cooling by natural air convection
Protections: Overload, short circuit, over power, over voltage, over current, over temperature
UL 508 approved
Built-in DC OK relay contact
-25° 70° C (-13° 158° F) wide operating temperature range
+
+
Overview
Specs
Reviews
Learn more about the TRENDnet TI-S24052
Model
Brand
TRENDnet
Model
TI-S24052
Features
Features
• Industrial power supply with integrated DIN-Rail mount • Provides up to 240W of power (52V DC, 4.61A) • Supported output voltage 48 – 56V DC • High efficiency 94% and low power dissipation • 150% peak load capability • Built-in active Power Factor Controller (PF > 0.98) • Cooling by natural air convection • Protections: Overload, short circuit, over power, over voltage, over current, over temperature • UL 508 approved • Built-in DC OK relay contact • -25° – 70° C (-13° – 158° F) wide operating temperature range
Dimensions & Weight
Weight
2.4200
Additional Information
Date First Available
August 02, 2024
