    UOTEK Industrial RS-232 RS-485 to CAN BUS Converter with Protocol RS232 RS485 Canbus Adapter Connector Isolation UT-2506A

    Be the first to review this product...
    • This converter is suitable for bidirectional data transmission between CAN Bus and RS-232/485 and supports CAN 2.0 protocol.
    • The CAN BUS communication interface supports 5Kbps-1Mbps communication rate. The RS-232/485 communication interface supports 600bps-230Kbps communication rate.
    • The adapter provides three data conversion modes: transparent conversion, transparent band identity conversion, and Modbus protocol conversion.
    • Converter operating temperature: -40 ~85, industrial standard, also suitable for outdoor extreme weather. The accessories are rail base.
    • The CAN interface is isolated from the system, and has the ability to prevent surges. It is widely used in industrial control and data communication systems.
    +
    +
    Overview
    Specs
    Reviews
    image for this item

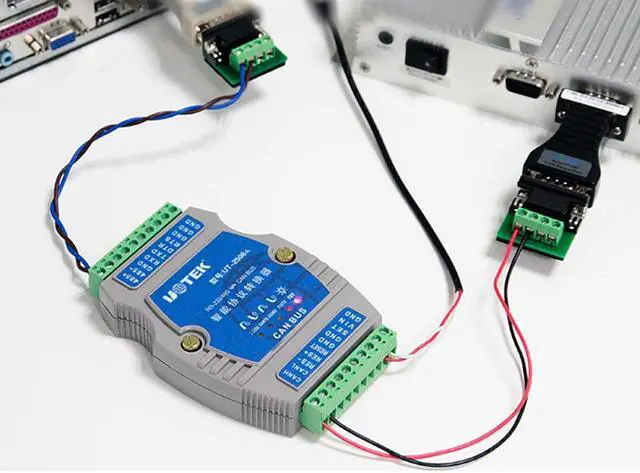

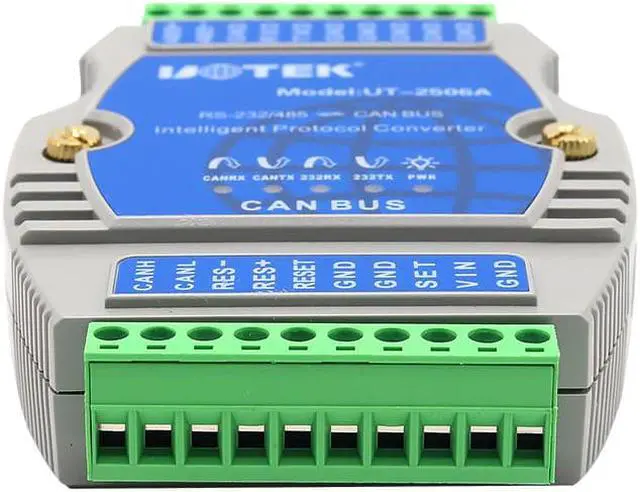

    • UT-2506A is a high performance RS-232/485 to CAN-Bus converter. It supports  interconnection between RS-232/485 and CAN-Bus. RS-232/485 baud rate is  1,200-115,200bps, and CAN-bus baud rate is 5kbps-1Mbps.The converter supports  three data conversion modes: transparent conversion, transparent tape identification conversion and Modbus protocol conversion. This extends the application scope of this converter.
    • UT-2506A converter provides configuration tools that allow users to set the interface parameters. It is industrial standard design; CAN communication interface and system is isolated; with anti-interference and surge protection ability,  it is widely used in  industrial control,data communication systems.
    • Supports bidirectional data transmission between CAN-bus & RS-232/485
    • Supports CAN 2.0 protocol
    • 1-ch CAN-bus interface, 5Kbps-1Mbps transmission rate1-ch RS-232/485 interface, 600bps-230Kbps transmission rate
    • Provides 3 data conversion mode: transparent conversion, transparent tape identification conversion, Modbus  protocol conversion
    • Working voltage: 12-36V DC
    • Working current:  less than 150mA@12V
    • Operating temperature: -40~ 85 Celsius
    • Storage temperature: -40~ 85 Celsius
    • Relative Humidity: 5% to 95%(non-condensing)
    • Storage humidity: 5% to 95%(non-condensing)
    • Isolated voltage: 1,000VDC
    image for this item
    image for this item
    image for this item
