UOTEK Industrial PCI to RS232 Opto-Isolated High-Speed Serial Card RS-232 8 Ports Computer Serial Expansion Converter Adapter HDR78 Female DB9 Female Connector with Electrostatic Protection UT-768I

Parameter:

Hardware Interface
Connection Type: 1 HDR78 Female
BUS: 32 bit Universal PCI
Signal:
RS-232: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS, RI
Transmission rate: 300bps- 921.6 kbps
Data bits: 5, 6, 7, 8
Stop bits: 1, 1.5, 2
Parity bits: None, Even, odd, space, Mark
Stream control: RTS/CTS XON/XOFF
Operating temperature: -40~85°C
Opto-isolated: Isolation voltage 2500Vrms 500DC continuous dedicated DC/DC module
Interface protection: ±15K V electrostatic protection
Support system: Win2000/2003/XP/Vista/7/8/ 8.1 /10/NT 4.0 /CE 4.2 / 5.0 / 6.0 /Vxworks/Linux 2.4. x/ 2.6. x

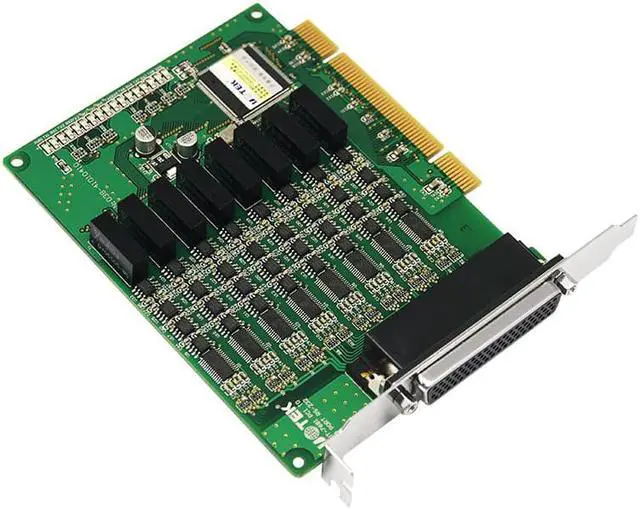

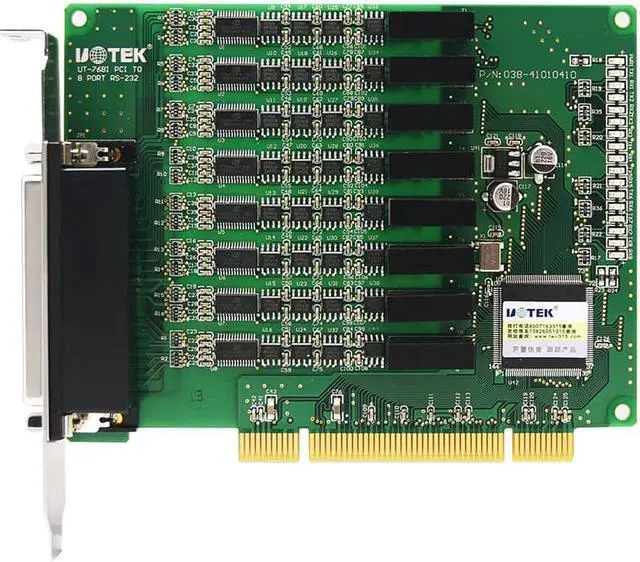

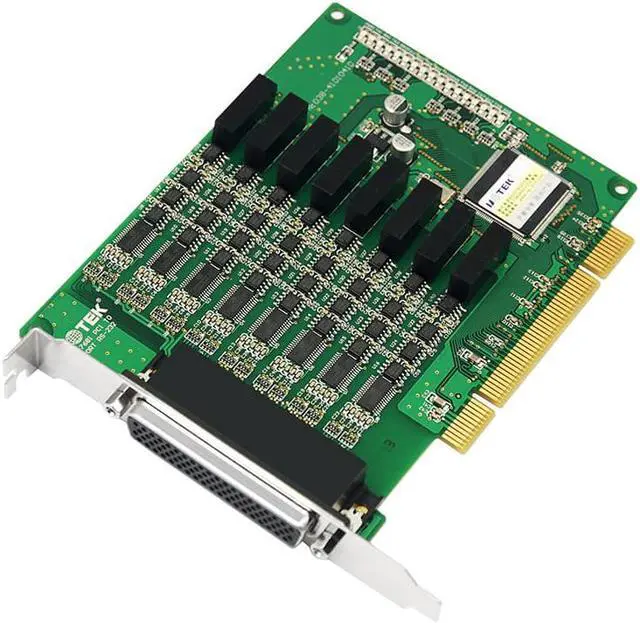

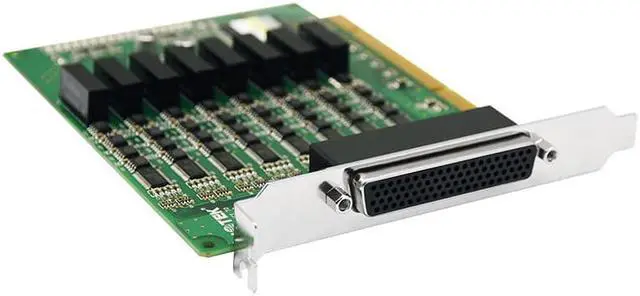

UT-768I is a universal PCI serial card designed for POS, ATM and other applications that can be used in industrial automation system manufacturing and system integration. UT-768I provides 8 RS-232 serial ports with built-in opto-isolator, capable of providing up to 2500Vrms isolation voltage, and can connect to a wide range of serial devices such as PC, terminals, modems, printers, scanners, etc. Each port is capable of data rates up to 921.6K bps and provides modem control signals to ensure compatibility with serial device peripherals. the UT-768i can operate on both 3.3V and 5V PCI buses, allowing the multi-serial card to be installed in any available PC or server.
