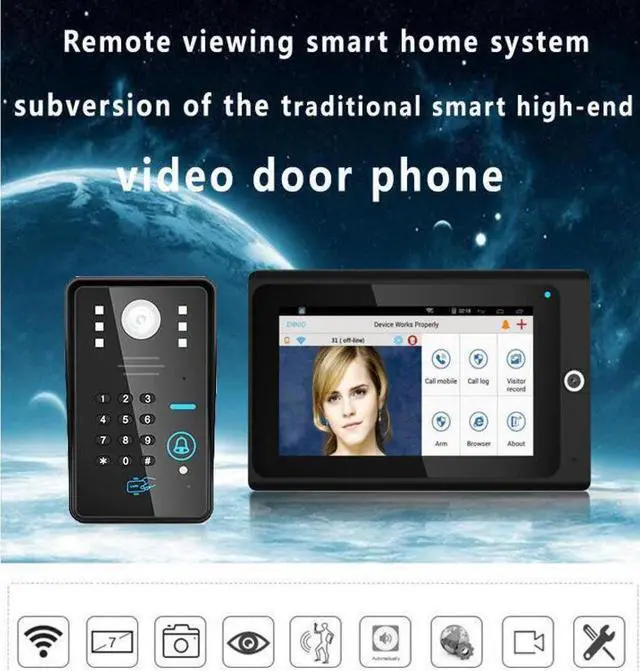

7inch HD digital monitor Smart Wifi wireless video intercom doorbell with burglar alarm access control

Features: 1.7 -inch HD digital monitor with a resolution of 1024*600.
2. Using multi-point capacitive touch screen, the operation is simpler and more user-friendly.
3. Adopt Android system, stable and easy to use.
4. Support 20 channels 433MHZ wireless alarm input, display and mobile phone linkage alarm function.
5. Family phone can call video with family at any time, network camera function.
6. The indoor unit and the doorbell and the mobile phone duplex intercom function, the sound is clear and loud, no need to hold the intercom.
7. When one or two modes are used, the indoor and indoor video intercom function can be realized.
8. With camera function, the maximum support 64G TF card, the factory standard 4G.
8. Human body sensing doorbell recording function (select "recording video" video file in the alarm setting and save it on the server, you can view the download at any time);
9. The P2P server pushes the guest call, the visitor takes a picture and detects the alarm record.
10. Network one-button configuration is very simple.
11. The camera has a high-definition 1 million pixels and a transmission resolution of 640*480.
12. Browse webpage features.
13. Mobile APP, indoor terminal password unlock function.
14. Support 500 ID cards, 10 groups of passwords.
15. Do not disturb function, the setting does not work after startup.
Equipment requirements:
1. Home network above 2M with wireless router.
2. Mobile phone Android 4.0 or above, Apple 8.0 or higher version

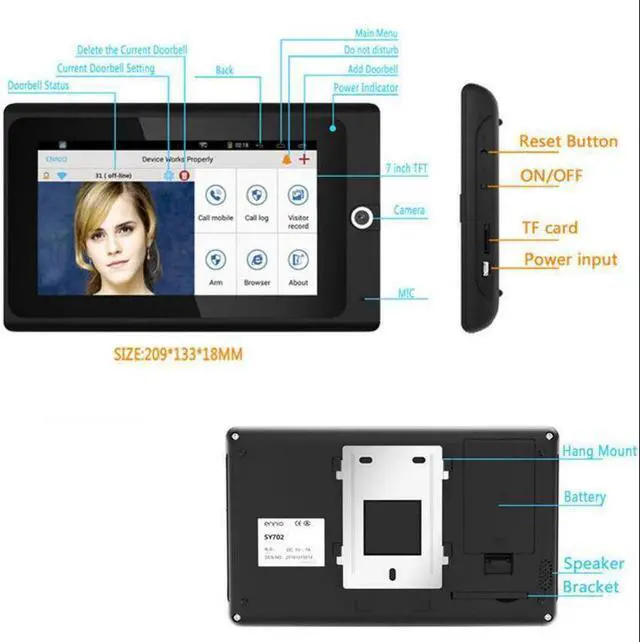

Indoor unit performance parameters:
System: Android
Display: 7 inch TFT 1024*600
Language: Chinese / English optional
Extended memory: TF card
Touch screen: multi-point capacitive screen
Battery: Built-in 1550MA
RF communication: standard WIFI 2.4GH z 802.11 b/g/n
Interface: mini USB power supply
Built-in camera: 100W
Intercom: Two-way real-time intercom for 120 seconds
Monitoring: 120 seconds
Unlocking: password verification
Take a photo: capture storage
Video: Check video recording on the server for 7 days
Product size: 209*133*18 (MM)
Outdoor unit performance parameters:
Model: SY-WIFI008
Camera: 1/4 / F 2.4 / 120 degrees
Pixel: 1 million
IR LED: 6 PCS
IR distance: about 3 meters
Power: DC12V 1A
Access control: Support 500 ID cards, 10 groups of passwords.
Power:
Standby: 1.5W
Work: 3.8
W Size: 155*95*45MM
Package: 7
inch smart internal machine: 1 set
Smart door machine: 1 set
USB internal power supply: 1
TF card 4G: 1
Door machine power supply: 1
Network plug: 1
Infrared intrusion probe: 2
Door magnet: 2
Screw package: 1 pack
ID card: 5 sheets
