    Visiontek Radeon HD 7750 SFF 1GB DDR3 3M (2 x HDMI, Mini DP), 900574

    • 1GB 128-Bit DDR3
    • Core Clock 800 MHz
    • 1 x DVI-D (via HDMI to DVI Adpater) 2 x HDMI 1 x Mini DisplayPort
    • 512 Stream Processors
    • PCI Express 3.0 x16
    +
    +
    Overview
    Specs
    Reviews (5)

    Introducing the Visiontek Radeon 7750 Dual HDMI, + mini Displayport graphics card

    AMD Eyefinity 3 monitor support (Windows Vista or newer). Short Form Factor design fits in today's Low Profile desktops and workstations (short bracket mounted on card). Card is convertible to standard ATX design with (included) tall bracket for standard chassis as well. Single slot, Triple Monitor support is now available for your Small Form Factor PC. The VisionTek Radeon HD7750 Dual HDMI, mDP 1GB SFF combines a radically new and efficient ultra-threaded core architecture with AMD's revolutionary AvivoTM video and display technology. Full support for Microsoft DX 11. The VisionTek Radeon HD7750 Dual HDMI, mDP 1GB SFF delivers exceptional visual performance for all types of PC entertainment and productivity. Ideal for moderate gaming, multimedia, office productivity, and workstation applications. With AMD Radeon™ HD7750 and the introduction of Discrete Digital Multi-Point Audio (DDMA), Radeon™ HD 7750 Series GPU enable new and interesting multi-display applications. DDMA enables Radeon™ HD 7750 Series GPU with the ability to output multiple and independent audio streams simultaneously through digital interfaces that support audio, such as DisplayPort™ and HDMI®.

    Radeon HD 7750

    Small Form Factor – Low Profile Design
    Short Form design fits in today's Low Profile desktops and workstations (short bracket mounted on card). Card is convertible to standard ATX design with included) tall bracket for standard chassis as well. Single slot, Dual Monitor support is now available for your Small Form Factor PC. The VisionTek Radeon HD7750 Dual HDMI, mDP 1GB SFF combines a radically new and efficient ultra-threaded core architecture with AMD's revolutionary AvivoTM video and display technology. Full support for Microsoft DX 1. The VisionTek Radeon HD7750 Dual HDMI, mDP 1GB SFF delivers exceptional visual performance for all types of PC entertainment and productivity. Ideal for moderate gaming, multimedia, office productivity, and workstation applications.

    Radeon HD 7750 Radeon HD 7750 GCN Architecture
    Step up to the world's most advanced graphics with the GCN Architecture, an award-winning 28nm chip engineered to enable an exceptional DirectX® 11 experience, today and tomorrow. Built to perform as the world's most advanced graphics, the GCN Architecture is the industry's first 28nm GPU design. Packed with unprecedented technologies, such as PCI Express 3.0 and the ultra-efficient AMD ZeroCore Power technology, this is the hardware that gamers deserve.4,7

    Get amazing EyeDefinition graphics with DirectX® 11 technology
    Play the most demanding DirectX® 11-capable games in true -Eye-Definition2 with the AMD Radeon™ HD 7700 series graphics. A new and advanced DirectX® 11-capable architecture with scalable geometry processing enables flawless graphics and unbelievable frame rates for the ultimate HD gaming experience.

    AMD App Acceleration
    With advanced video features like color correction, image sharpening and noise removal, AMD App Acceleration sets the bar for beautiful movies. And when it's time to multi-task, the optimized GCN Architecture is more than ready to make quick work of everyday applications.3

    Discrete Digital Multi-Point Audio (Windows Vista or newer)
    With AMD Radeon™ HD7750 and the introduction of Discrete Digital Multi-Point Audio (DDMA), Radeon™ HD 7750 Series GPU enable new and interestingmulti-display applications. DDMA enables Radeon™ HD 7750 Series GPU with the ability to output multiple and independent audio streams simultaneously through digital interfaces that support audio, such as DisplayPort™ and HDMI®. Each audio stream can be multi-channel for each video playback.

    Today's PC monitors increasingly support HDMI® and DisplayPort™ inputs. Typically, these PC monitors have the ability to decode and convert a digital audio stream from the System Integrated Audio, HDMI® (or DisplayPort™) input and transmit the sound through its embedded speakers or a stereo jack for external speakers. Besides Display Port 1.2 tremendous bandwidth to drive frame sequential 3D displays at 120Hz with support for resolutions up to 2560x1600 and daisy-chaining capabilities, Radeon™ HD 7750 series GPUs are also the first graphics cards in the market to support 3GHz HDMI® 1.4 bandwidth to deliver a high-performance Stereoscopic 3D gaming experience. The Radeon™ HD 7750 Series is positioned as the GPUs of choice for commercial multimedia solution.

    Radeon HD 7750

      Specifications
    • GCN Architecture
    • PCI Express 3.0 x16 bus interface
    • High Speed DDR3 memory
    • DirectX® 11-capable graphics
    • 9th generation programmable hardware tessellation units
    • Shader Model 5.0
    • DirectCompute 11
    • Accelerated multi-threading
    • OpenGL 4.2 support
    • Image quality enhancement technology
    • Up to 24x multi-sample and super-sample anti-aliasing modes
    • Adaptive anti-aliasing
    • Morphological Anti-Aliasing (MLAA)
    • DirectX® 10/11 Super-Sample
    • Anti-Aliasing (SSAA)
    • 16x angle independent anisotropic texture filtering
    • 128-bit floating point HDR rendering
    • AMD App Acceleration2
    • OpenCL 1.2 Support
    • Microsoft C++ AMP
    • DirectCompute 11
    • Double Precision Floating Point
    • AMD HD Media Accelerator
    • Dual, triple or quad-GPU scaling
    • 3GHz HDMI 1.4a with Stereoscopic 3D Frame Packing Format, Deep Color, xvYCC wide gamut support, and high bit-rate audio
    • Integrated HD audio controller
    • Output protected high bit rate 7.1
    • channel surround sound over HDMI with no additional cables required
    • Supports AC-3, AAC, Dolby TrueHD and DTS Master Audio formats
      System Requirements
    • PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard
    • 300W (or greater) power supply recommended
    • Windows Vista, Windows 7, Windows 8 or newer required for DDMA multi audio support. Windows XP limited to Dual Video and single audio only.
    • 400W power supply (or greater) recommended for AMD CrossFire™ technology in dual mode
    • Certified power supplies are recommended.
    • Minimum 1GB of system memory
    • Installation software required CD-ROM drive
    • DVD playback requires DVD drive
    • Blu-ray™ playback requires Blu-ray drive supported configurations

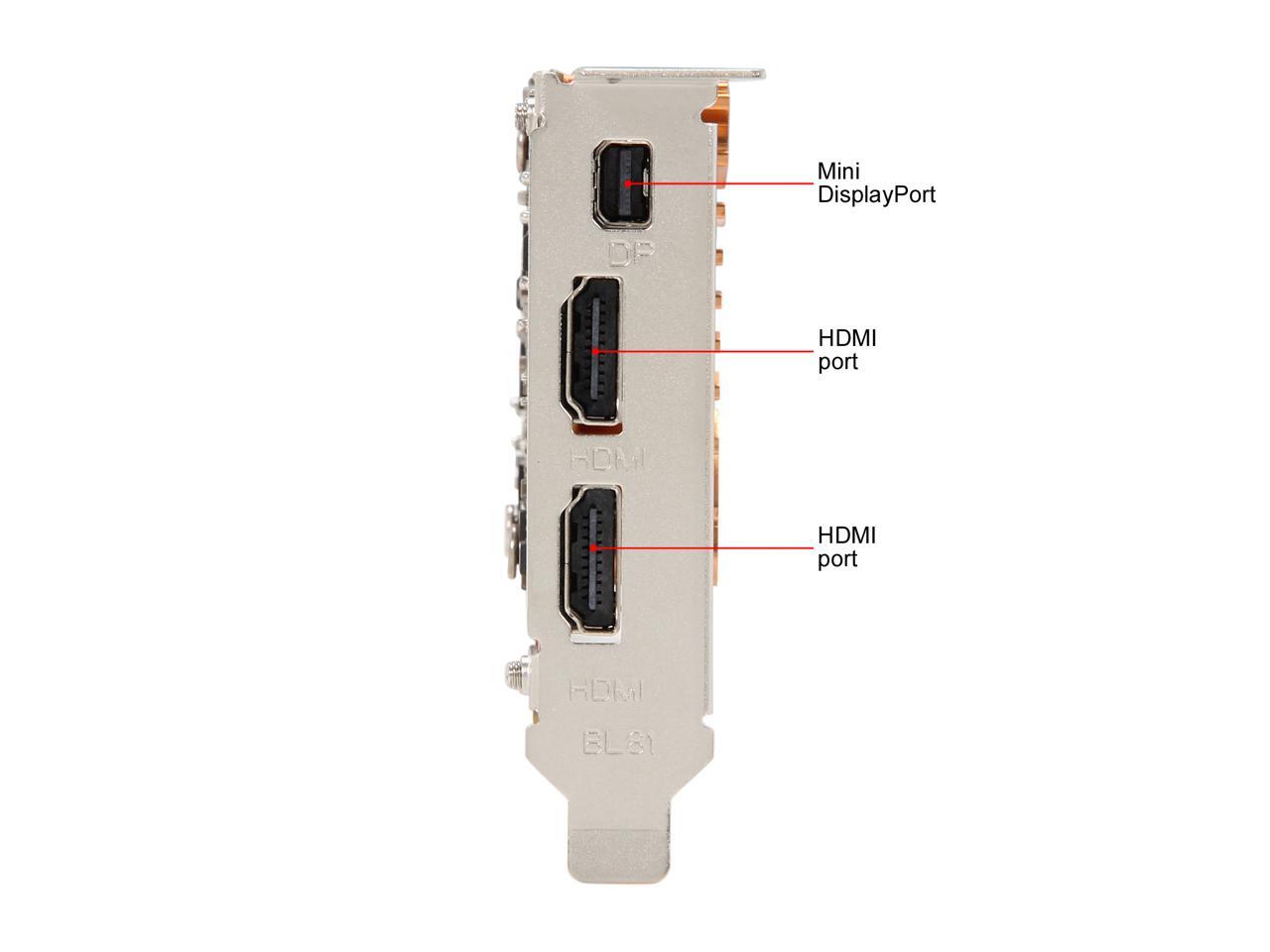

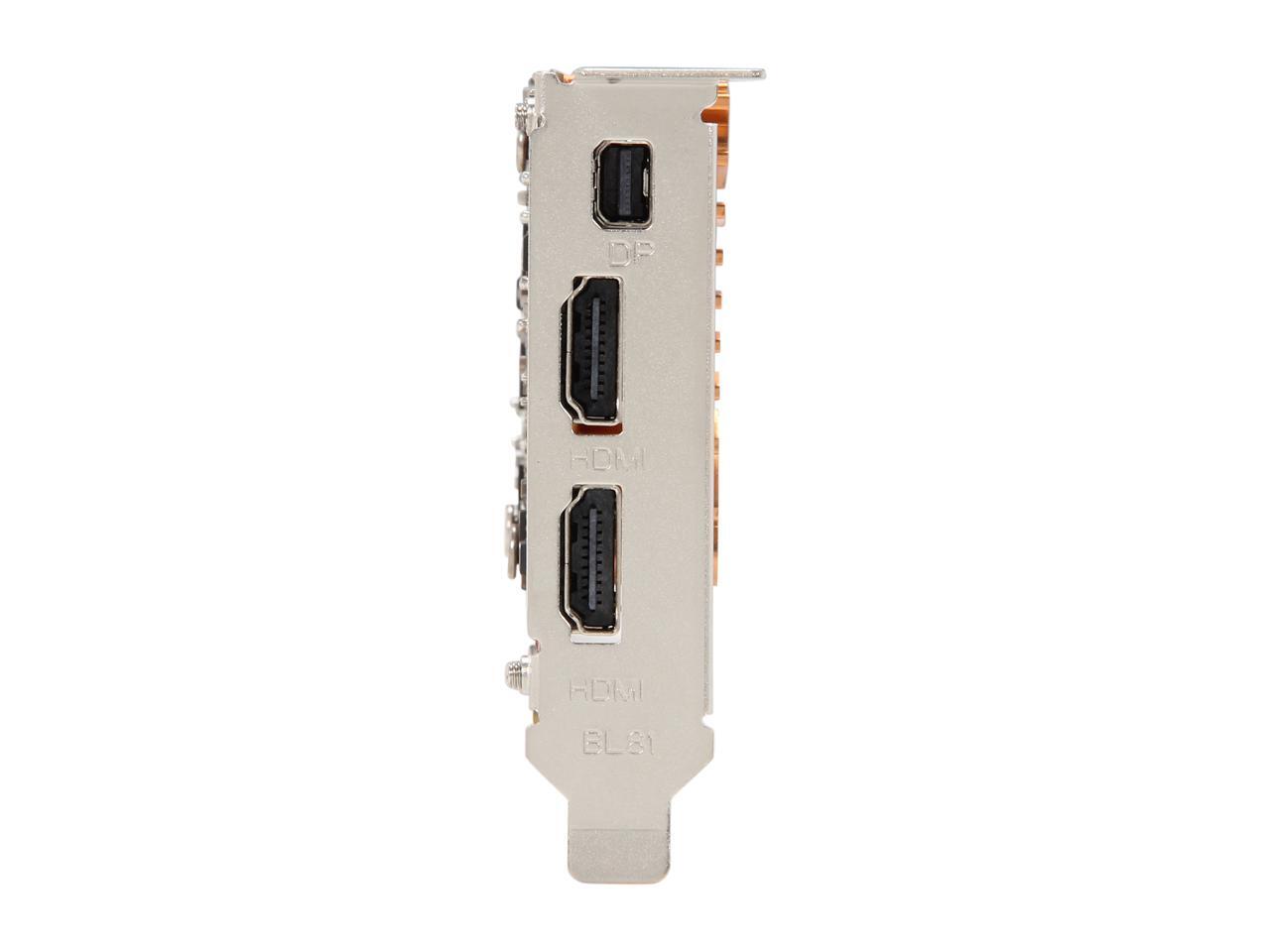

    • (2) HDMI Connectors
    • (1) Mini Display Port
    • (1) DVI (via HDMI to DVI Adpater

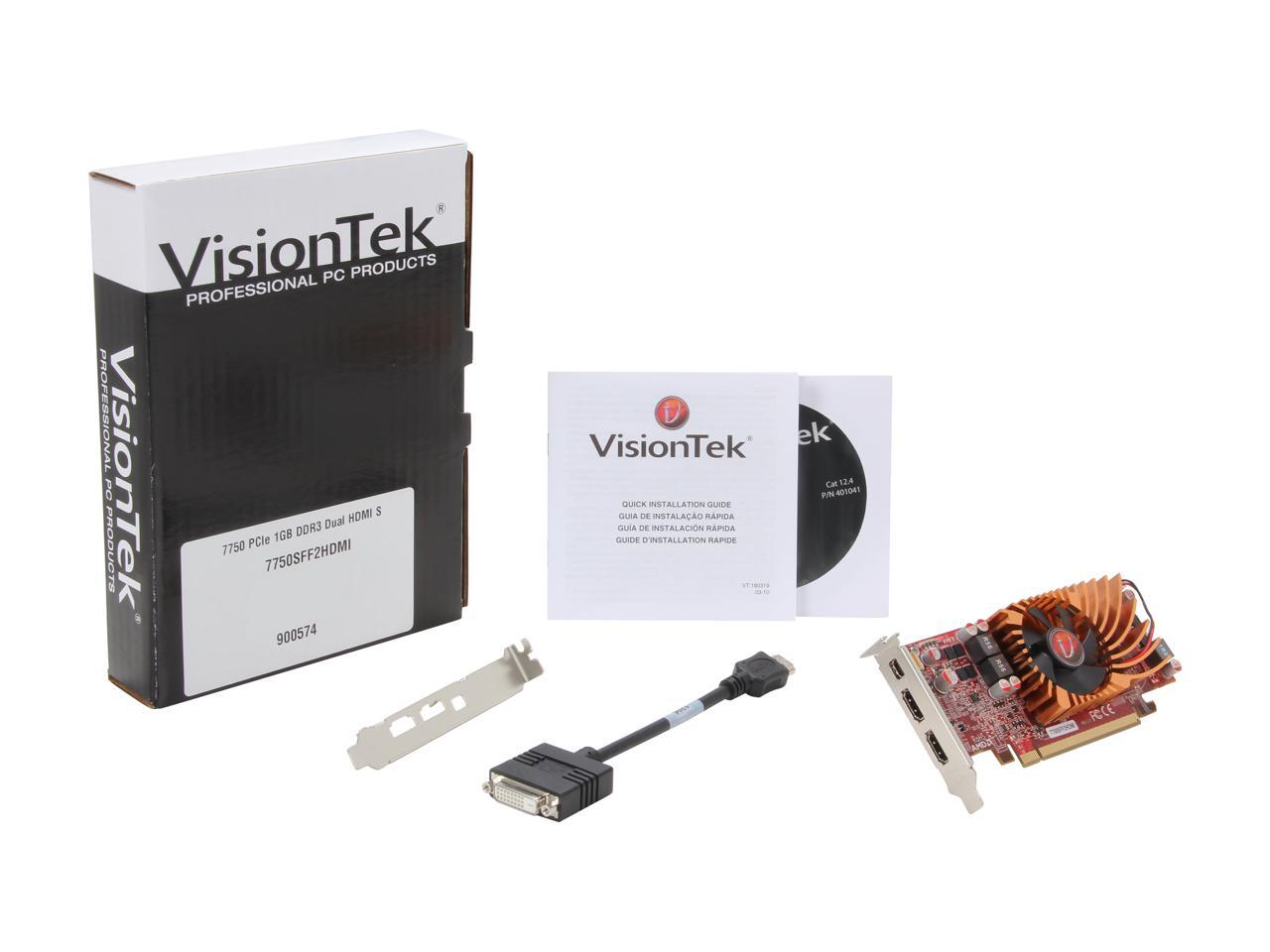

    • What's in the Box:
    • AMD Radeon™ HD 7750 Card 900574
    • Set-up CD
    • Quick Install Guide
    • HDMI to DVI Adpater & Tall Bracket


    • Supported Operating Systems
    • Windows 7
    • Windows Vista
    • Windows XP
    The operation of AMD CrossFire™ technology in dual mode requires a second AMD Radeon™ HD 7700 series graphics card and an AMD CrossFire™ Ready motherboard.
    Additional hardware (e.g. Blu-ray drive, HD or 10-bit monitor, TV tuner) and/or software (e.g. multimedia applications) are required for the full enablement of some features. Not all features may be supported on all components or systems - check with your component or system manufacturer for specific model capabilities and supported technologies.
    2 AMD App Acceleration is a set of technologies designed to improve video quality and enhance application performance. Full enablement of some features requires support for OpenCL™, DirectCompute or DirectX® Video Acceleration (DXVA). Not all products have all features and full enablement of some capabilities and may require complementary products.
    3 AMD PowerPlay™ and AMD PowerTune are technologies offered by certain AMD Radeon™ products, which are designed to intelligently manage GPU power consumption in response to certain GPU load conditions. Not all products feature all technologies – check with your component or system manufacturer for specific model capabilities.
    4 hardware is available
    5 AMD CrossFire™ technology requires an AMD CrossFire Ready motherboard, an AMD CrossFire™ Bridge Interconnect (for each additional graphics card) and may require a specialized power supply.
    6 Utilization of PCI Express 3.0 bandwidth requires a mainboard equipped with a PCI Express 3.0 PHY. Not all mainboards feature this technology – check with your component or system manufacturer for specific model capabilities.
    7 Projected AMD CrossFire™ scaling based on analogous GPUs from previous generations of AMD Radeon™ products.
