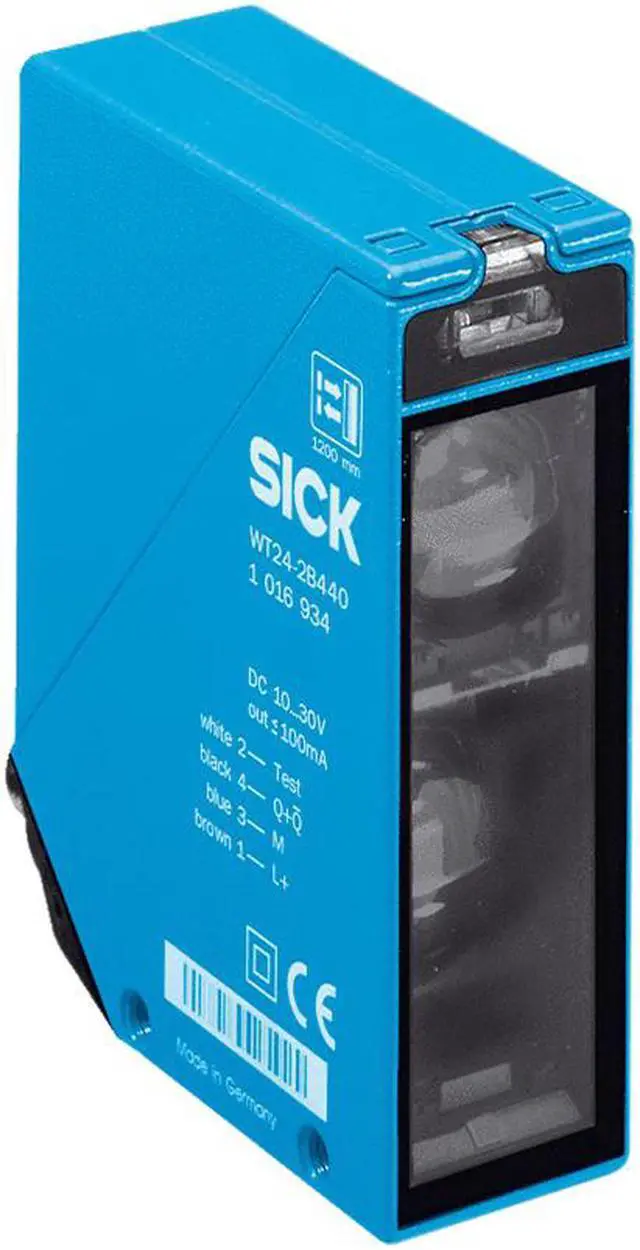

Sick WT24-2B440 Photoelectric Sensors 1016934 ,New
- Sick WT24-2B440 Photoelectric Sensors 1016934 ,New
+
+
Overview
Specs
Reviews
Sick WT24-2B440 Photoelectric Sensors 1016934 ,New
Features
Sensor/ detection principle Photoelectric proximity sensor, Background suppression

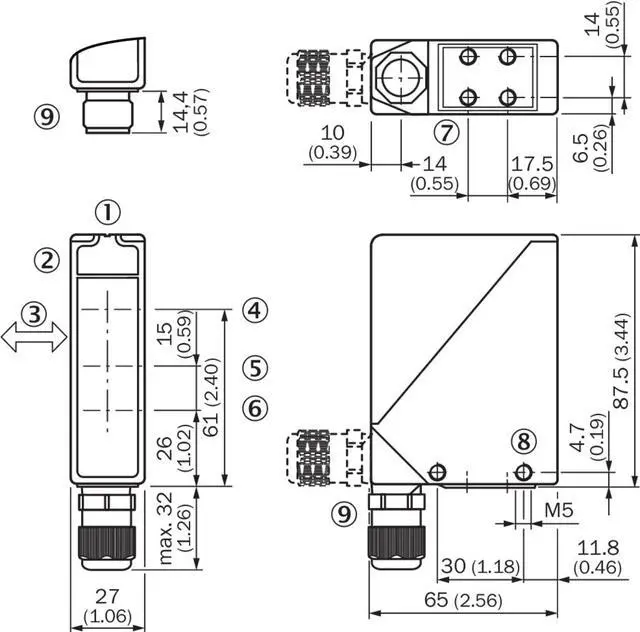

Dimensions (W x H x D) 27 mm x 87.5 mm x 65 mm
Housing design (light emission) Rectangular
Sensing range max. 100 mm ... 1,200 mm 1)
Sensing range 100 mm ... 1,200 mm 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 40 mm (1,200 mm)
Adjustment Potentiometer
Potentiometer
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Power consumption 50 mA 3)
Switching output
NPN
PNP
Switching mode Light/dark switching
Switching mode selector Selectable via PNP/NPN selector, selectable via light/dark selector
Output current Imax. = 100 mA
Response time = 500 µs 4)
Switching frequency 1,000 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class II 9)
Weight 330 g
Housing material Metal, Zinc diecast
Optics material Plastic, PMMA
Enclosure rating IP69K
Test input sender off TE to 0 V
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
Features
Sensor/ detection principle Photoelectric proximity sensor, Background suppression
Dimensions (W x H x D) 27 mm x 87.5 mm x 65 mm
Housing design (light emission) Rectangular
Sensing range max. 100 mm ... 1,200 mm 1)
Sensing range 100 mm ... 1,200 mm 1)
Type of light Visible red light
Light source LED 2)
Light spot size (distance) Ø 40 mm (1,200 mm)
Adjustment Potentiometer
Potentiometer
Mechanics/electronics
Supply voltage 10 V DC ... 30 V DC 1)
Ripple < 5 Vpp 2)
Power consumption 50 mA 3)
Switching output
NPN
PNP
Switching mode Light/dark switching
Switching mode selector Selectable via PNP/NPN selector, selectable via light/dark selector
Output current Imax. = 100 mA
Response time = 500 µs 4)
Switching frequency 1,000 Hz 5)
Connection type Male connector M12, 4-pin
Circuit protection
A 6)
C 7)
D 8)
Protection class II 9)
Weight 330 g
Housing material Metal, Zinc diecast
Optics material Plastic, PMMA
Enclosure rating IP69K
Test input sender off TE to 0 V
Ambient operating temperature –40 °C ... +60 °C
Ambient storage temperature –40 °C ... +75 °C
